Photograph

Name

Description

Standard Counterweight Shaft

The Standard Counterweight Shaft is included with all Paramount MEs.

Dimensions: 460 mm (18 in.) long and 38 mm (1.5 in.) in diameter.

This length shaft holds up to six (6) 9 kg (20 lb.) counterweights.

See below for the thread specifications.

Cost: $230.00 each

Note: this item is included with the Paramount ME.

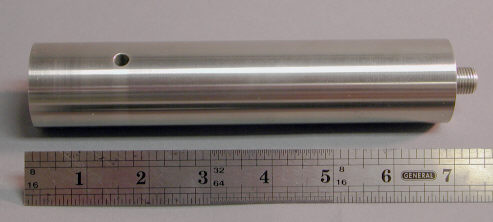

Counterweight Shaft Extension Bar

This is an optional accessory and is not included with the Paramount ME.

The Counterweight Shaft Extension Bar screws into the end of the Standard Counterweight Shaft for additional counterweight capacity.

Dimensions: 178 mm (7 in.) long and 38 mm (1.5 in.) in diameter.

The combined length of the standard counterweight shaft plus the counterweight extension shaft (178 mm or 24-in.) holds up to eight (8) 9 kg (20 lb.) counterweights. This product replaces the Long Counterweight Shaft.

See below for the thread specifications.

Cost: $145.00 each

Note: this item is sold separately and is not included with the Paramount ME.

Contact Software Bisque through the Software Bisque Support Corner to order this product.

None

European (Baader) counterweight shaft

This product is obsolete and no longer manufactured by Software Bisque. All Paramount MEs come with the Standard Counterweight Shaft.

This shaft was previously supplied with all Paramount MEs sold in Europe. (Software Bisque's European distributor, Baader Planetarium GmbH, initially supplied counterweights for the Paramount ME.)

Dimensions: 460 mm (18 in.) long, 51 mm (2 in.) in diameter.

Thread

Nominal Size

Male

1 1/8-inch x 12 threads per inch (TPI), 60 degree form, UNF

Female

1/2-inch x 20 threads per inch (TPI)
