Description

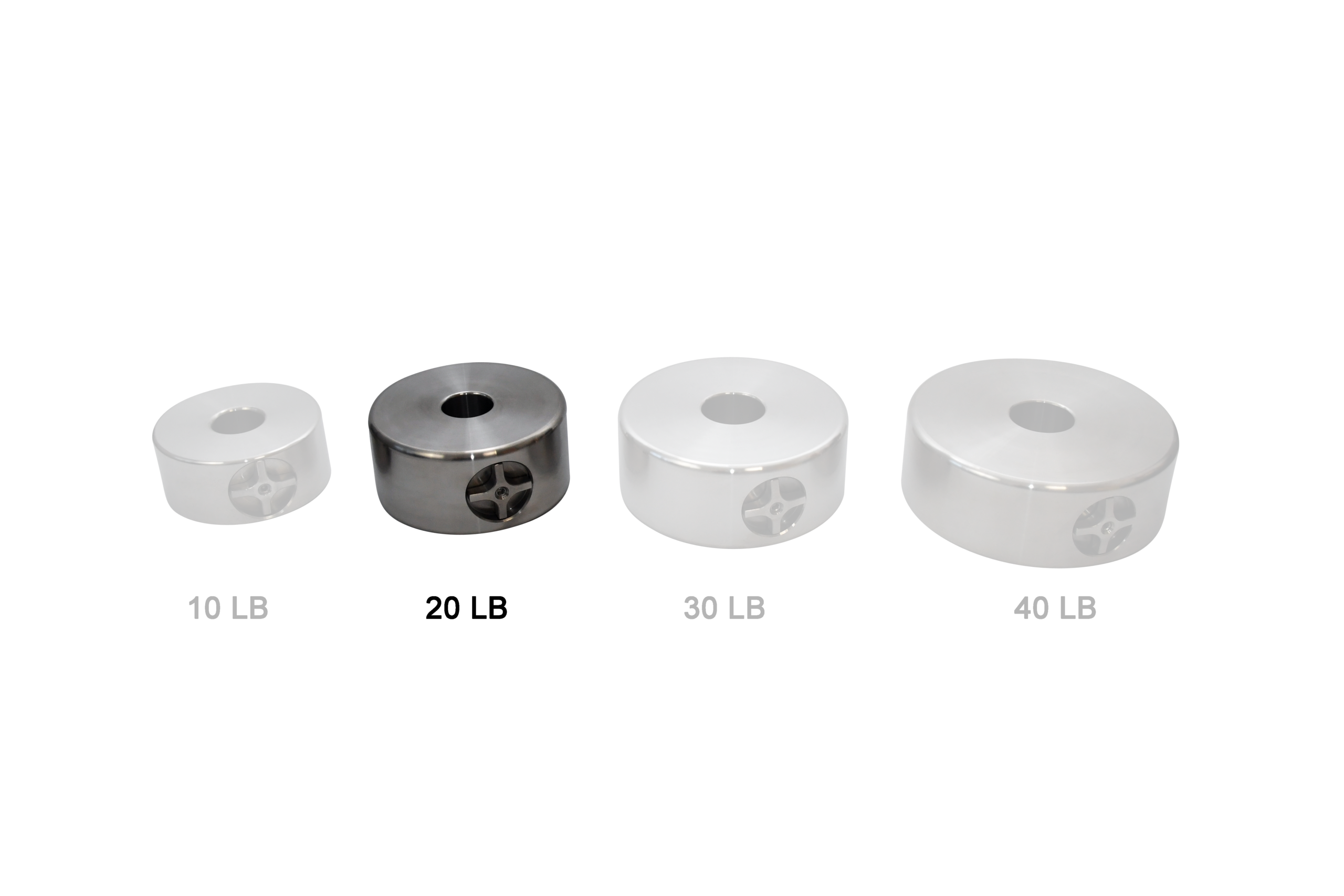

These 1.50″ (3.81 cm) bore counterweights are compatible with all 1.5″ counterweight shafts included with the Paramount MX+ and Paramount MYT model mounts, as well as the legacy Paramount ME and Paramount MX. The Paramount ME II includes a 1.875″ counterweight shaft, but is also thread-compatible with the 1.5″ counterweight shaft.
- The Paramount MYT includes one 9 kg (20 lb.) counterweight. If the total weight of the instruments attached to the Paramount MYT exceeds about 13.5 kg (30 lb.), additional counterweights may be required.
- The Paramount MX and ME included two 9 kg (20 lb.) counterweights. If the total weight of the instruments attached to the Paramount ME exceeds about 32 kg (70 lb.), additional counterweights may be required.
- The Paramount MX+ includes two 9 kg (20 lb.) counterweights. If the total weight of the instruments attached to the Paramount ME exceeds about 32 kg (70 lb.), additional counterweights may be required.
- The Paramount ME included two 9 kg (20 lb.) counterweights. If the total weight of the instruments attached to the Paramount ME exceeds about 32 kg (70 lb.), additional counterweights may be required.
- The Paramount ME II includes a 1.875″ diameter counterweight shaft and two 1.875″ bore, 30 lb (13.6 kg) counterweights.
- The height of the counterweight is approximately 7.3 cm (2.9 in.)*
Specifications*
- Weight: 9 kg (20 lb.)
- Height: 7.3 cm (2.9 in.)
- Diameter: 15.2 cm (6 in.)
- Bore diameter: 3.8 cm (1.5 in.)
*Due to minor variations in the size of the stainless steel blanks, the exact outer dimensions of individual counterweights may vary, and the final weight may vary by +/-5 percent.
